RAK Antenna Kit (8dBi or 5.8dBi) for Meshtastic, MeshCore, LoraWAN (Indoor or Outdoor)

RAK LoraWAN Antenna Kit for Meshtastic & MeshCore Networks

The second generation of RAK antennas for LoRa incorporate high-performance omni-directional elements which support Long Range ultra high frequency (UHF) bands.

Connectors

• Antenna: N-Type Male
• Pigtail interface converter: N-Type Female to RP-SMA Male

Product Features

• Frequency: US915 (900-930MHz)
• VSWR: ≤1.5
• Beamwidth: 360 degrees
• Impedance: 50 Ohms
• Polarization: Vertical
• Radome Body: Fiberglass
• Connector: N-Type Male
• Bracket Inclusion: 2pcs brackets

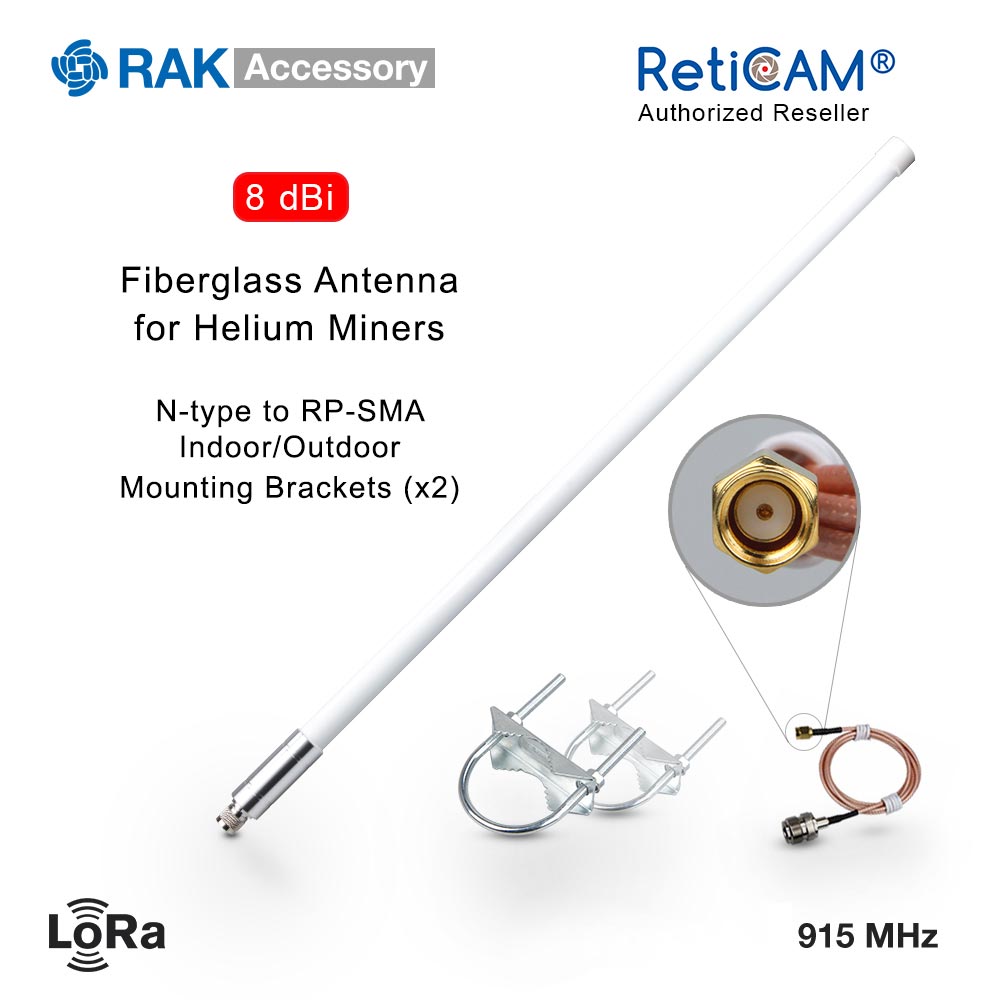

• 8dBi Antenna Length: 35.4 inch (900 ± 20mm)

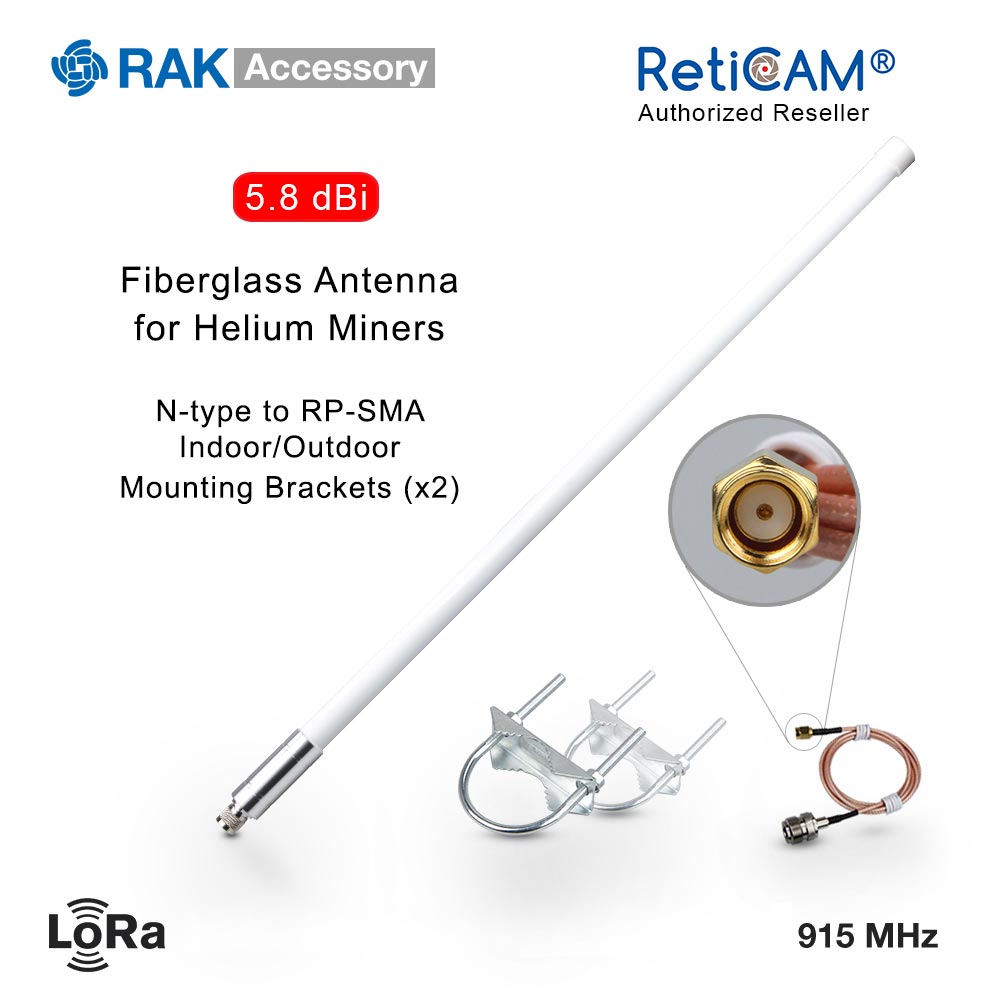

• 5.8dBi Antenna Length: 31.5 inch (800 ± 10mm)
• Operation Temperature: -30°C~65°C
• Storage Temperature: -30°C~75°C

What's included:

• 1x Antenna
• 2x Mounting brackets with hardware
• 1x Pigtail interface converter

Note: This bundle includes a pigtail interface converter, which is a short and thin RG316 cable. It has an N-Type Female Connector on one end, and a RP-SMA Male Connector on the other.
