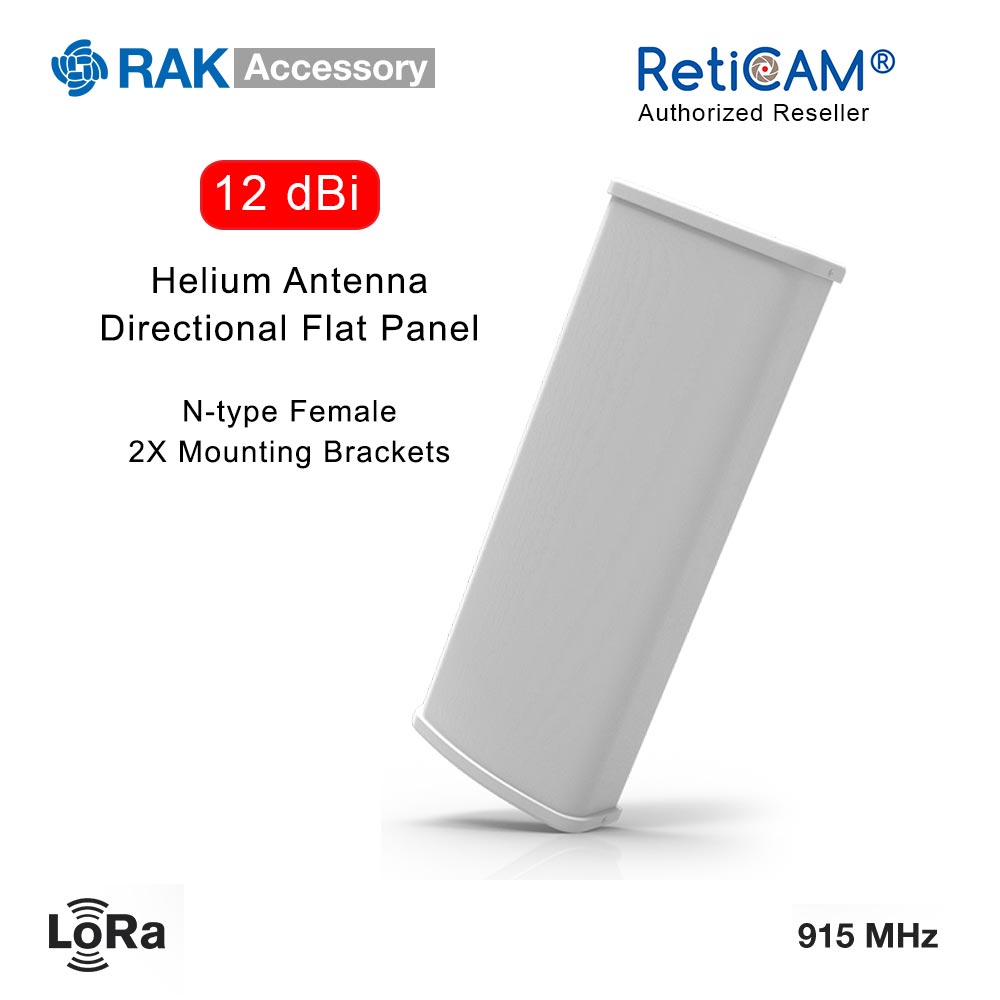

RAK 12dBi Directional Flat Panel Antenna for Helium Hotspot Miners
RAK 12dBi Directional Flat Panel Antenna for Helium Hotspot Miners
RAK 12dBi Directional Flat Panel Antenna for Helium Hotspot Miners

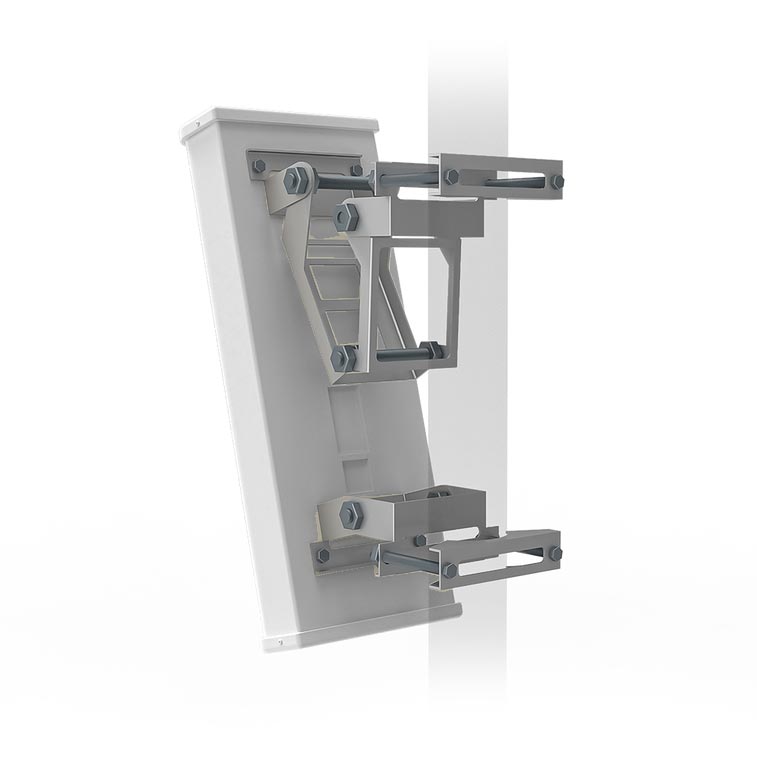

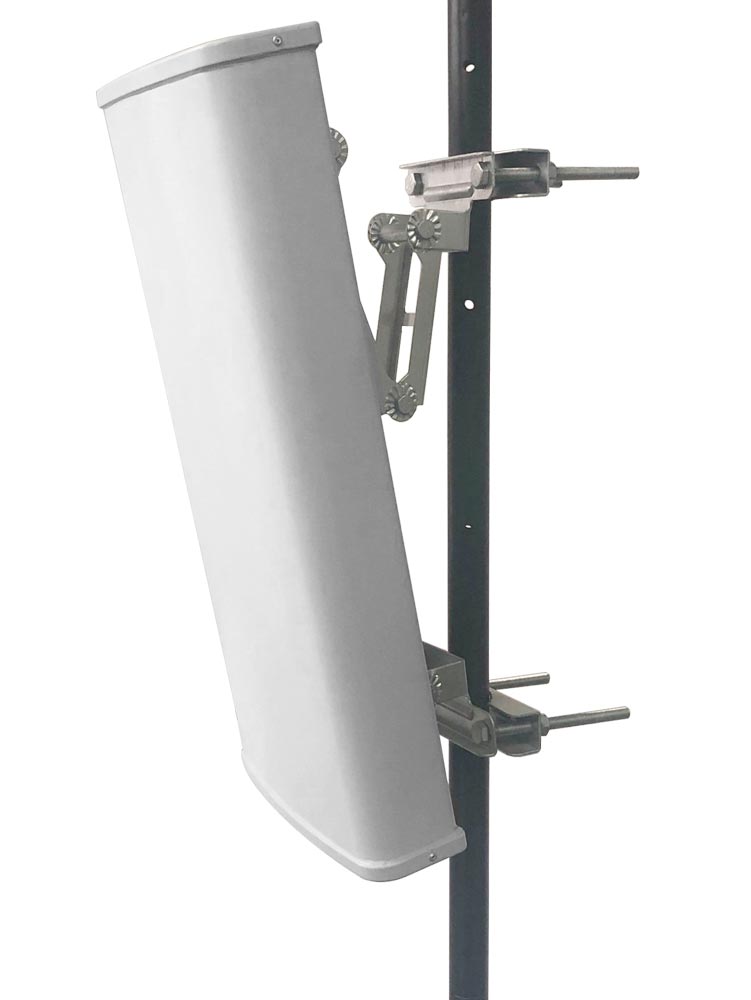

This high-gain directional antenna is the latest in the RAKwireless LPWAN accessories portfolio. It is specifically useful in scenarios where directional signal reception is necessary, allowing for precise pointing to the field of your main signals, reducing the SNR. The high gain allows for a better reception from high-distance devices. Easy to mount with the included mounting kit.
Compatible with all brands and models of HNT miners, including RAK, MNTD, Bobcat, Sensecap, Nebra, Linxdot, etc.
You invested a lot in your miner, and the easiest yet significant way to maximize your rewards is to upgrade the antenna. RAK antennas are battle tested, widely used around the world, and very reputable. Don't waste your time and risk your earnings - go with a proven antenna from the start!
Antenna Connector
N-Type Female (your cable needs to have an N-Type Male connector)
Product Features
- Frequency: 860 ~ 930 MHz
- Gain: 12 dBi
- VSWR: ≤1.5
- Horizontal beam width: 65º (± 10º)
- Vertical beam width: 35º (± 10º)
- Impedance: 50 Ω
- Polarization: Vertical
- Type: Directional
- Radome body: UPVC
- Connector: N-type female
- Bracket inclusion: 2 pcs brackets
- Dimensions: 750×280×125 mm
- Operating temperature: -40 ~ +55 ºC
- Mounting pole diameter: ∅ 30 ~ 75 mm
What's included:
- 1x Antenna

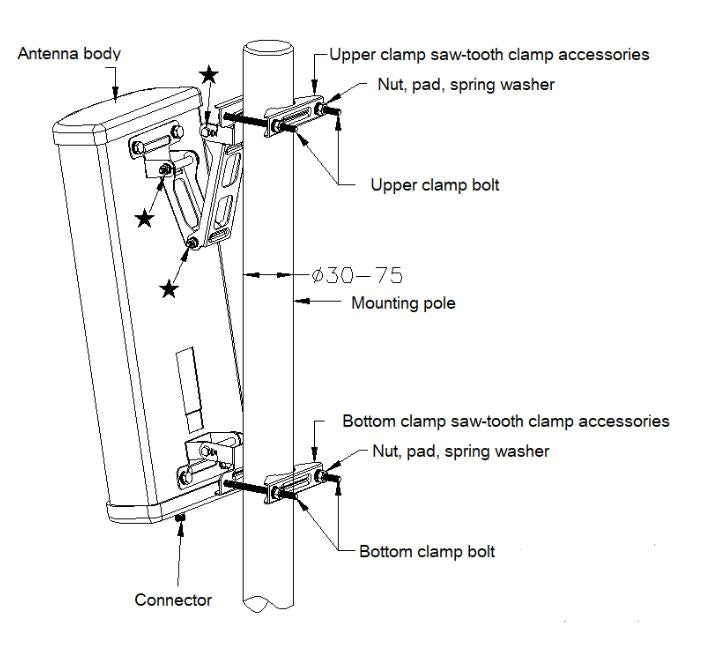

- 1x Mounting Kit
