McGill Antenna Kit - Tuned 915MHz Omni Directional for Meshtastic & MeshCore Networks (6dBi, 7.5dBi, 9dBi)
McGill Antenna Kit - Tuned 915MHz Omni Directional for Meshtastic & MeshCore Networks (6dBi, 7.5dBi, 9dBi)
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
/
per
Shipping calculated at checkout.
🚚 Free Shipping
Personalize Your Product
Couldn't load pickup availability
McGill Antenna Tuned 915MHz for Meshtastic & MeshCore Networks (6dBi, 7.5dBi, 9dBi)
McGill Microwave Systems' High Performance Antennas are designed for use with Meshtastic, MeshCore, Helium, and other LoRaWAN networks, offering superior power transmission with optimized VSWR designs.
The design has been specifically tuned to operate with peak performance over only the frequency band of interest to US, Canada, and Australia node operators—the US915 & AU915 frequency bands.
- Antenna Connector: N-Type Male
- Impedance: 50 Ohms
- Weatherproofing: Heavy-duty fiberglass construction built to withstand harsh outdoor elements and UV exposure
These optimized antennas feature a superior VSWR performance of 1.5:1 absolute maximum—which immediately results in over +7% more transmitted, non-reflected power from your antenna and reduced mismatch loss when compared to many commercially available 2:1 VSWR alternatives.
Dimensions & Fitment:

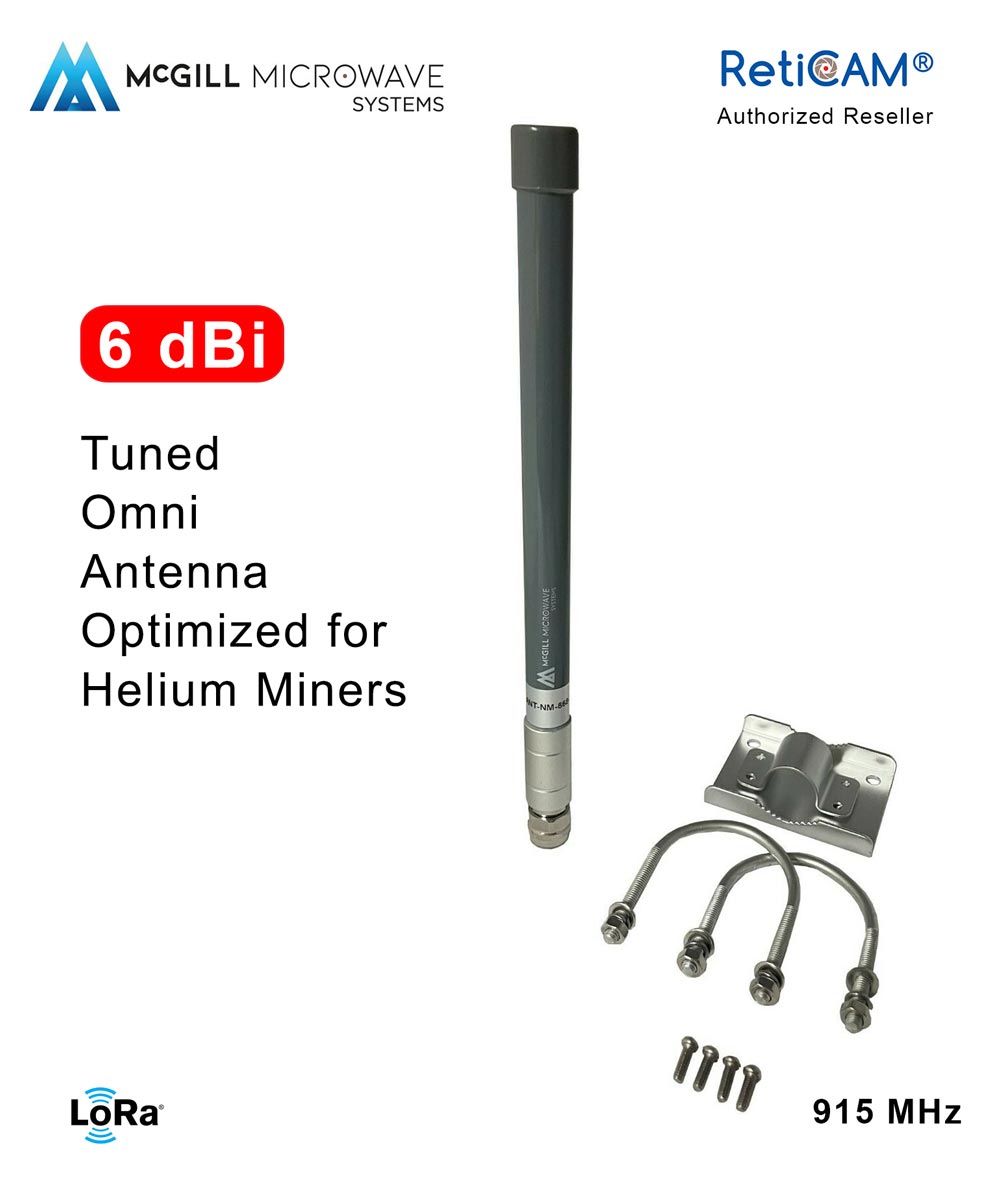

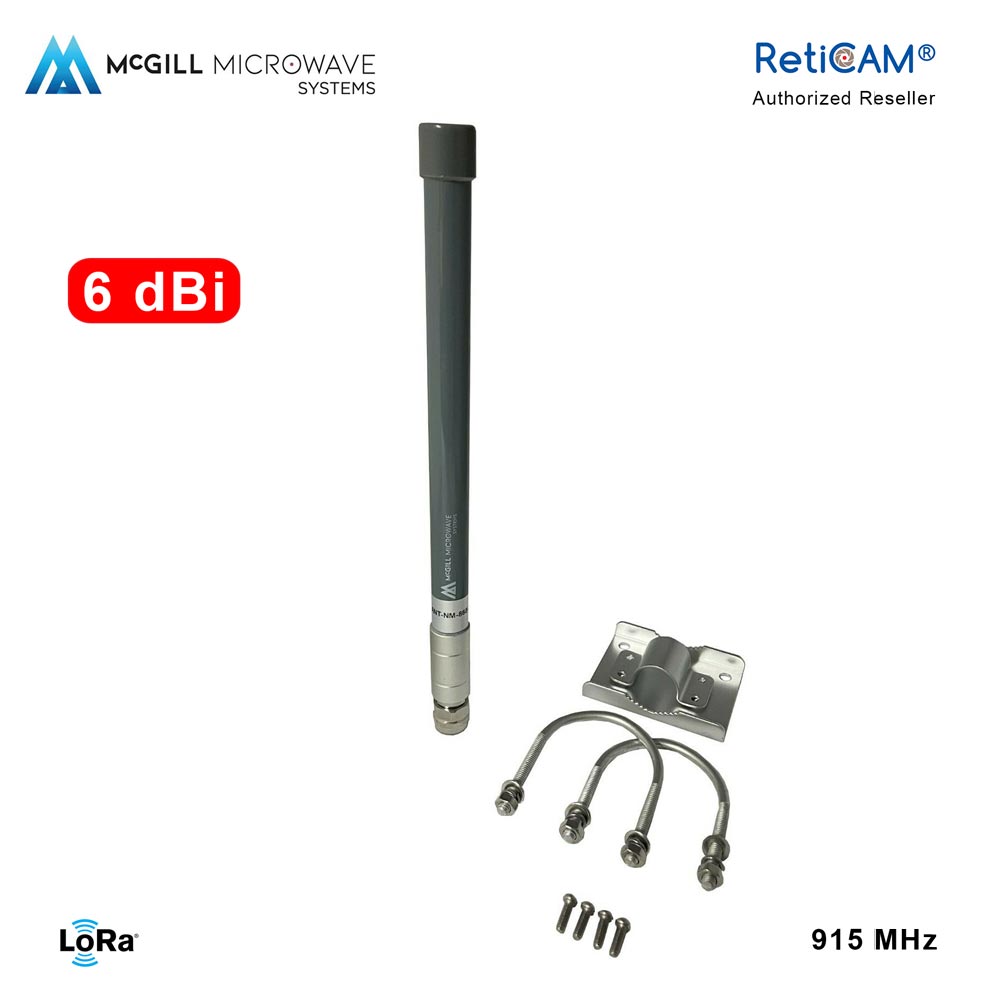

- 6 dBi: 22" (L) x 0.8" (Diameter)

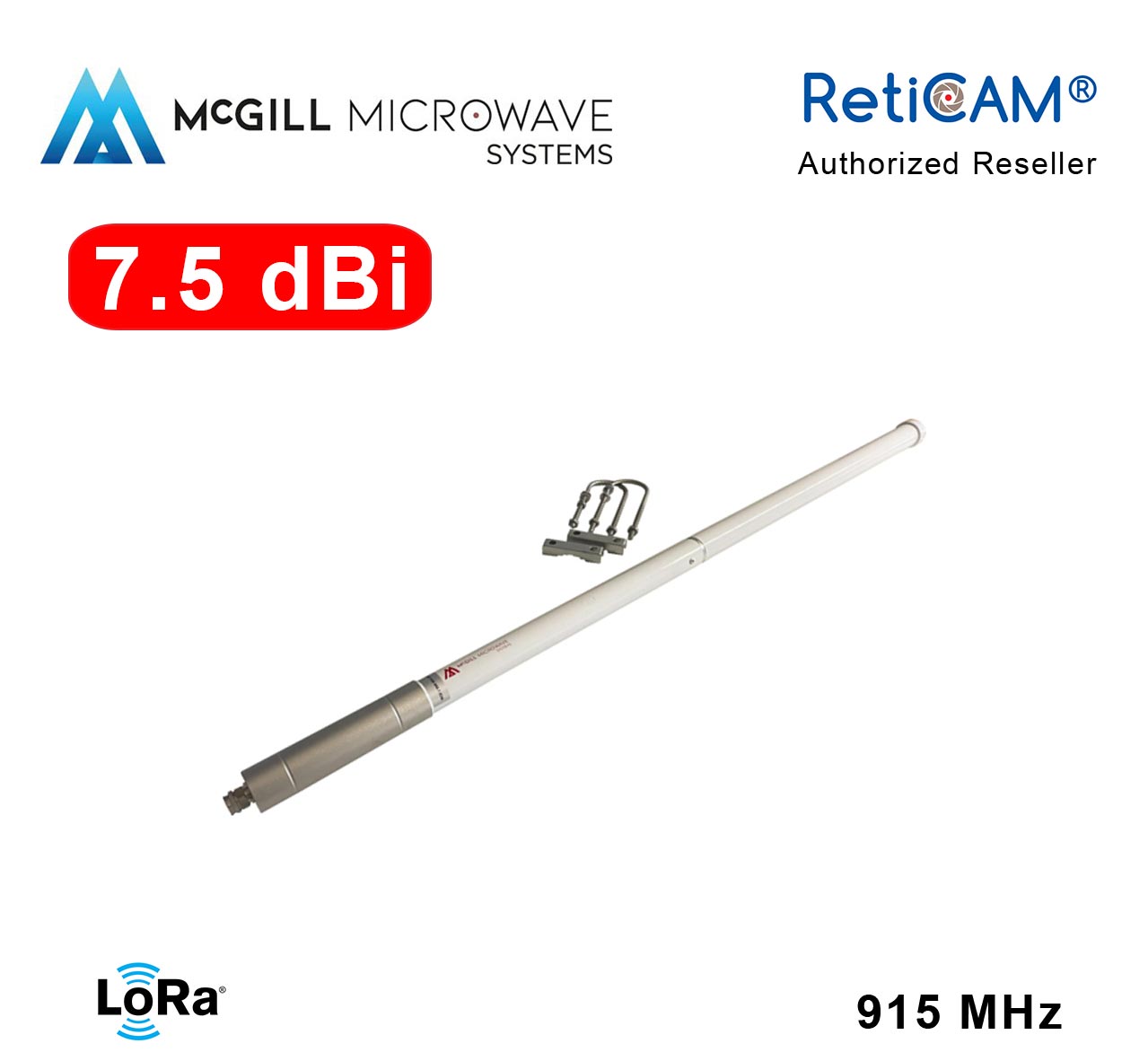

- 7.5 dBi: 45" (L) x 1.5" (Diameter)
- 9 dBi: 65" (L) x 1.5" (Diameter)
Note on the 9 dBi Model: The McGill 9 dBi Omni Antenna is quite MASSIVE. At over 5 feet long and twice the diameter of a standard 3/4" galvanized pipe, please ensure you have a sturdy pole, mast, or heavy-duty mount strong enough to handle the size, weight, and wind load of this antenna.
What's Included:
- 1x Tuned McGill 915MHz Antenna
- 1x Heavy-Duty Pole Mounting Kit (U-bolts/clamps)
